Industrial components for excavator systems.
Advanced 87391RW/87691RW 90° SAE Code 61 (3000 PSI) / Code 62 (6000 PSI) flange one-piece hydraulic hose fitting. Engineered with a pre-crimped integrated ferrule design, a 90-degree bent elbow, precision-machined flange head, and elastomeric O-ring face seal to provide rapid assembly, robust face-clamping sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced CF ORFS male to ORFS female swivel run tee hydraulic adapter. Features an in-line ORFS male run port with a captive elastomeric face O-ring, an opposing in-line free-spinning ORFS female swivel nut, and a 90° ORFS male branch on a heavy-duty forged T-junction body. Delivers compact three-way flow distribution, twist-free in-line coupling, zero-clearance slip assembly, positive flat-face sealing, and superior blowout resistance in SAE J1453 and ISO 8434-3 ultra-high-pressure hydraulic systems.
Advanced BF ORFS male to ORFS female swivel branch tee hydraulic adapter. Features dual in-line O-Ring Face Seal (ORFS) male run ports with captive elastomeric face O-rings and a 90° center branch equipped with a free-spinning ORFS female swivel nut on a forged T-junction body. Delivers compact three-way flow distribution, twist-free branch connection, zero-clearance slip assembly, positive flat-face sealing, and superior blowout resistance in SAE J1453 and ISO 8434-3 ultra-high-pressure hydraulic systems.
Advanced AF ORFS male union tee hydraulic adapter. Features three symmetrical O-Ring Face Seal (ORFS) male ends with precision face retention grooves and captive elastomeric O-rings on a heavy-duty forged T-junction body. Delivers three-way fluid distribution, zero-clearance slip assembly, positive flat-face sealing, and superior blowout resistance in SAE J1453 and ISO 8434-3 ultra-high-pressure hydraulic systems.
Advanced 9F ORFS female swivel sealing cap hydraulic adapter. Features a free-spinning female UN/UNF threaded swivel nut enclosing a flat internal sealing face and heavy-duty blind core. Threads directly onto male O-Ring Face Seal (ORFS) fittings or line ends to deliver positive flat-face shutoff, complete contaminant exclusion, and superior blowout resistance in SAE J1453 and ISO 8434-3 ultra-high-pressure hydraulic systems.
Advanced 6F straight bulkhead ORFS male union hydraulic adapter. Features dual symmetrical O-Ring Face Seal (ORFS) male ends with captive face O-rings, an elongated threaded bulkhead section, and an integrated heavy-duty locknut. Delivers secure panel pass-through mounting, zero-clearance slip assembly, positive flat-face sealing, and superior blowout resistance in SAE J1453 and ISO 8434-3 ultra-high-pressure hydraulic systems.
Advanced 4F ORFS male plug hydraulic adapter. Features an O-Ring Face Seal (ORFS) male end with a precision face retention groove, captive elastomeric O-ring, and a solid heavy-duty hex body. Threads directly into ORFS female swivel nuts or ports to provide dependable flat-face shutoff, complete contaminant exclusion, and superior blowout resistance in SAE J1453 and ISO 8434-3 high-pressure industrial hydraulic systems.
Advanced 2F9 90° elbow ORFS male to ORFS female swivel hydraulic adapter. Features an O-Ring Face Seal (ORFS) male end with a captive elastomeric face O-ring, an independently rotating ORFS female swivel nut with a flat sealing face, and a forged right-angle body. Delivers compact 90° directional routing, twist-free zero-clearance servicing, positive elastomeric sealing, and superior blowout resistance in SAE J1453 and ISO 8434-3 ultra-high-pressure hydraulic circuits.
Advanced 3F straight ORFS female swivel union hydraulic adapter. Features dual symmetrical free-spinning O-Ring Face Seal (ORFS) female swivel nuts with precision-machined flat sealing faces flanking an integrated body. Delivers zero-clearance drop-in servicing, complete twist-free alignment between two fixed male ORFS connections, leak-proof elastomeric compression sealing, and superior blowout resistance in SAE J1453 and ISO 8434-3 ultra-high-pressure hydraulic systems.
Advanced 3F straight ORFS female swivel union hydraulic adapter. Features dual symmetrical free-spinning O-Ring Face Seal (ORFS) female swivel nuts with precision-machined flat sealing faces flanking an integrated body. Delivers zero-clearance drop-in servicing, complete twist-free alignment between two fixed male ORFS connections, leak-proof elastomeric compression sealing, and superior blowout resistance in SAE J1453 and ISO 8434-3 ultra-high-pressure hydraulic systems.
Advanced 2F straight ORFS male to ORFS female swivel hydraulic adapter. Features an O-Ring Face Seal (ORFS) male end with an embedded face O-ring, a free-spinning ORFS female swivel nut with a flat sealing face, and a solid hex body. Delivers zero-clearance slip assembly, twist-free line connection, positive elastomeric sealing, and superior blowout resistance in SAE J1453 and ISO 8434-3 ultra-high-pressure hydraulic circuits.
Advanced 1FG straight ORFS male to BSPP male O-ring hydraulic adapter. Features an O-Ring Face Seal (ORFS) male end with an embedded face seal and a parallel BSPP (G) male stud with shoulder O-ring, flanking a solid hex body. Delivers drop-in zero-clearance servicing, dual positive elastomeric sealing, and blowout-proof reliability in SAE J1453 and ISO 1179-2 / ISO 8434-3 high-pressure fluid power circuits.
Advanced 1FO straight ORFS male to SAE male O-ring boss (ORB) hydraulic adapter. Features an O-Ring Face Seal (ORFS) male end with a captive elastomeric seal and an SAE straight thread O-ring boss male stud with shoulder O-ring, flanking a solid hex body. Delivers zero-clearance drop-in assembly, dual positive elastomeric sealing, and blowout-proof reliability in SAE J1453 and SAE J1926-1 / ISO 11926-1 high-pressure systems.
Advanced 1F straight ORFS male union hex nipple hydraulic adapter. Features dual symmetrical O-Ring Face Seal (ORFS) male ends with precision-machined face grooves, captive elastomeric O-rings, and an integrated solid hex body. Delivers drop-in replacement ease, zero-clearance slip assembly, positive flat-face sealing, and superior blowout resistance in SAE J1453 / ISO 8434-3 ultra-high-pressure hydraulic systems.
Advanced GN NPT female union tee hydraulic adapter. Features three symmetrical precision-tapered National Pipe Taper (NPT) female threaded ports on a heavy-duty forged T-junction body. Delivers dependable three-way fluid distribution, thread-wedging mechanical dry sealing, and superior blowout resistance in ANSI/ASME B1.20.1 high-pressure industrial hydraulic and piping networks.
Advanced AN NPT male union tee hydraulic adapter. Features three symmetrical precision-tapered National Pipe Taper (NPT) male threaded ends on a heavy-duty forged T-junction body. Delivers three-way fluid distribution, dependable thread-wedging dry sealing, and superior blowout resistance in ANSI/ASME B1.20.1 high-pressure industrial hydraulic systems and process piping networks.
Advanced 2NU9 90° elbow NPT male to NPSM female swivel 60° cone hydraulic adapter. Features tapered NPT male pipe threads, a free-spinning NPSM straight mechanical swivel nut with an internal 60° cone seat, and a forged elbow body. Delivers compact right-angle routing, twist-free line alignment, metal-to-metal dry sealing, and superior blowout resistance in ANSI/ASME B1.20.1 high-pressure fluid power systems.

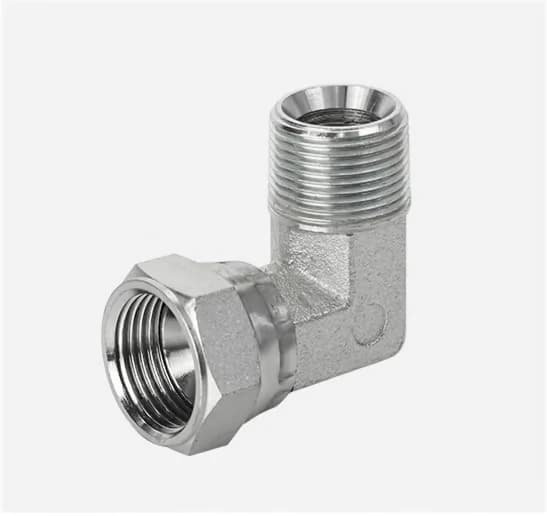

Advanced 2NJ9 90° elbow NPT male to JIC female swivel 37° flare hydraulic adapter. Features tapered NPT male pipe threads, a free-spinning JIC female swivel nut with an internal 37° cone seat, and a forged elbow body. Delivers compact right-angle routing, twist-free line alignment, airtight dry sealing, and superior blowout resistance in SAE J514 and ANSI/ASME B1.20.1 high-pressure industrial systems.

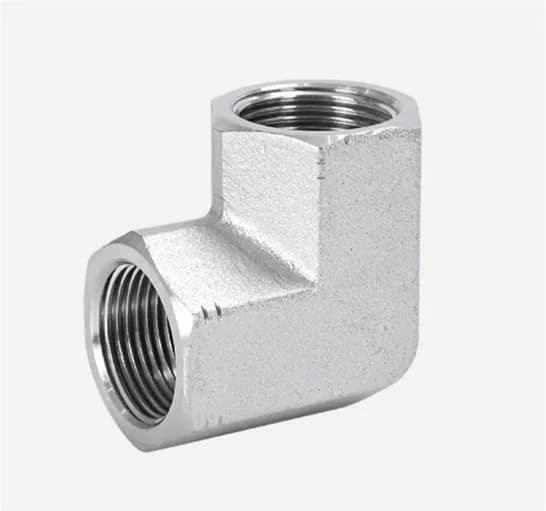

Advanced 7N9 90° elbow NPT female hydraulic adapter. Features dual symmetrical internal tapered National Pipe Taper (NPT) threads on a heavy-duty forged elbow body. Delivers compact right-angle directional routing, dependable thread-wedging dry sealing, and superior blowout resistance in ANSI/ASME B1.20.1 high-pressure industrial hydraulic systems and process piping networks.

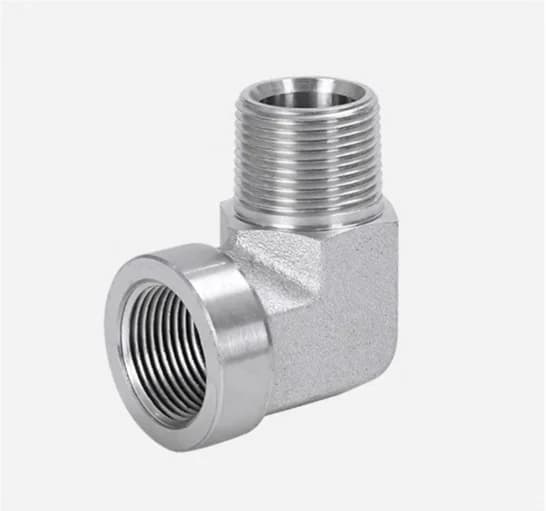

Advanced 5N9 90° elbow NPT male to NPT female hydraulic adapter (street elbow). Features external tapered NPT male threads, internal tapered NPT female threads, and a forged right-angle body. Delivers compact 90° directional routing, dependable thread-wedging dry sealing, and superior blowout resistance in ANSI/ASME B1.20.1 high-pressure industrial hydraulic systems and process piping networks.

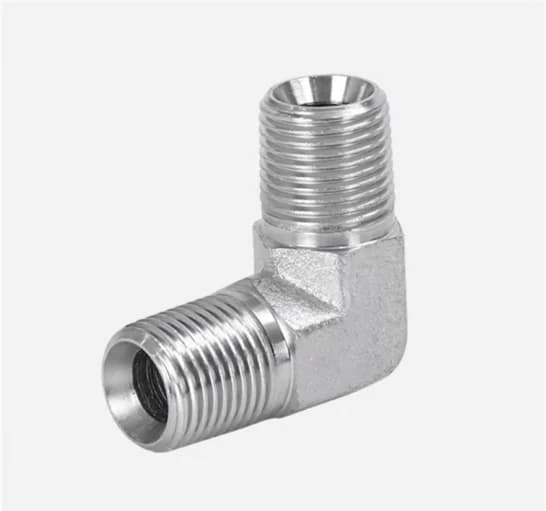

Advanced 1T9 90° elbow BSPT male hydraulic adapter. Features dual symmetrical tapered British Standard Pipe Taper (BSPT) male threads on a heavy-duty forged elbow body. Delivers compact right-angle directional routing, dependable thread-wedging dry sealing, and superior blowout resistance in ISO 7-1 / BS 21 high-pressure industrial hydraulic systems and process piping networks.

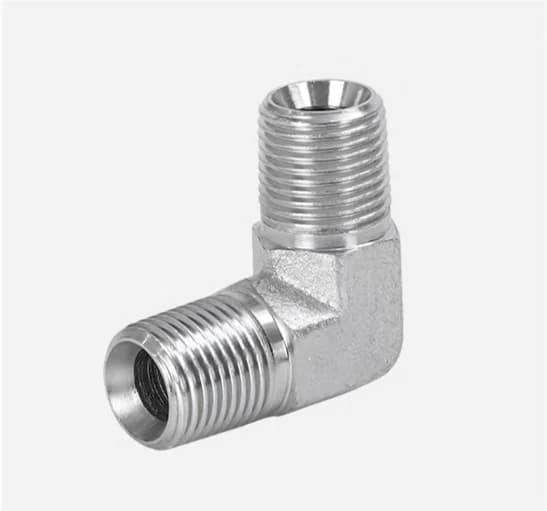

Advanced 1N9 90° elbow NPT male hydraulic adapter. Features dual symmetrical tapered National Pipe Taper (NPT) male threads on a heavy-duty forged elbow body. Delivers compact right-angle directional routing, dependable thread-wedging dry sealing, and superior blowout resistance in ANSI/ASME B1.20.1 high-pressure industrial hydraulic systems and process piping networks. 富文本描述

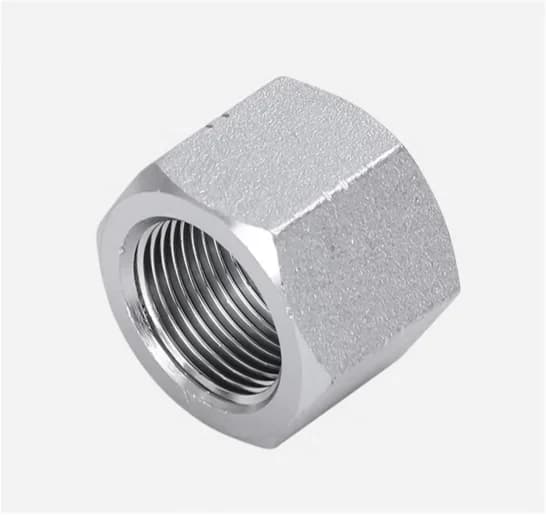

Advanced 9N NPT female pipe sealing cap. Features precision-machined internal tapered National Pipe Taper (NPT) threads and a solid heavy-duty hex body. Threads directly onto external NPT male pipe ends or fittings to provide dependable thread-wedging shutoff, contaminant exclusion, and burst-proof reliability in ANSI/ASME B1.20.1 high-pressure industrial hydraulic and process piping systems.

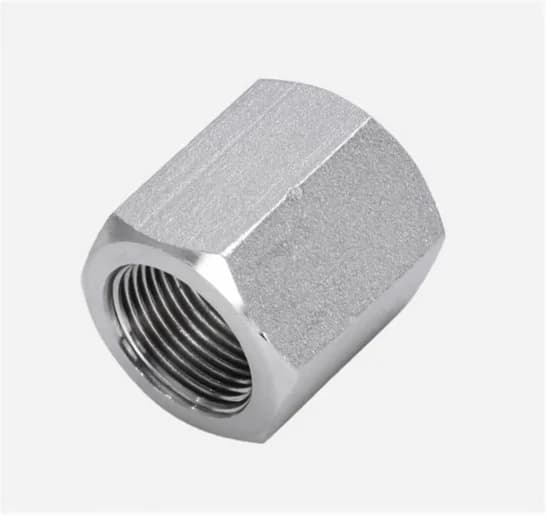

Advanced 7N straight NPT female coupling hydraulic adapter. Features dual symmetrical internal precision-tapered National Pipe Taper (NPT) threads and a heavy-duty solid hex body. Delivers dependable thread-wedging dry sealing, straight-through laminar fluid flow, and superior blowout resistance in ANSI/ASME B1.20.1 high-pressure industrial hydraulic and piping systems.

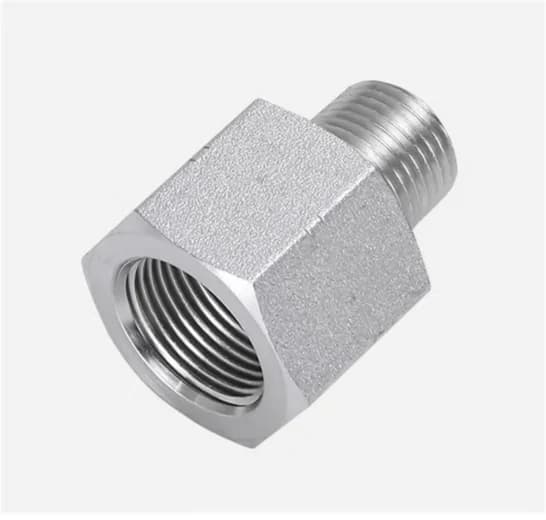

Advanced 5N straight NPT male to NPT female hydraulic adapter. Features external tapered NPT male threads, internal tapered NPT female threads, and a solid heavy-duty hex body. Delivers dependable thread-wedging dry sealing, straight-through laminar flow, and superior blowout resistance in ANSI/ASME B1.20.1 high-pressure industrial hydraulic and piping systems.

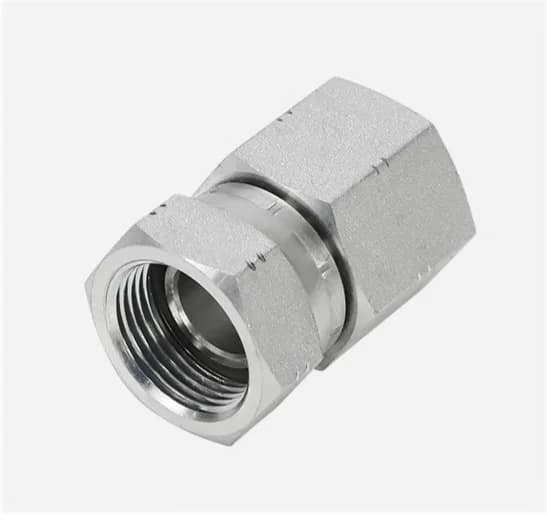

Advanced 7NU straight NPT female to NPSM female swivel 60° cone hydraulic adapter. Features precision internal tapered NPT threads and a free-spinning NPSM straight mechanical female swivel nut with an internal 60° cone seat. Delivers twist-free inline coupling, airtight mechanical dry sealing, and superior blowout resistance in ANSI/ASME B1.20.1 high-pressure industrial hydraulic systems.

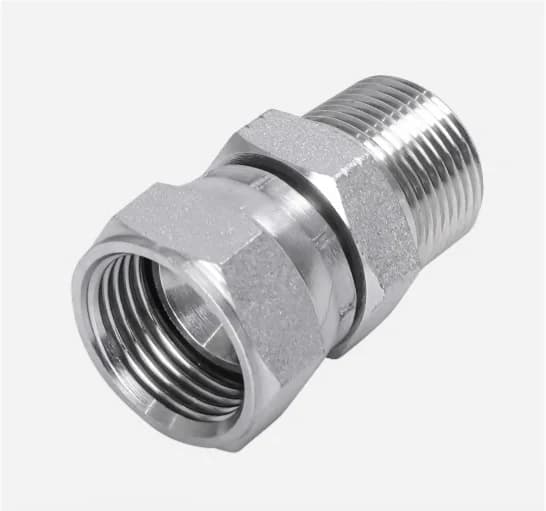

Advanced 2NU straight NPT male to NPSM female swivel 60° cone hydraulic adapter. Features tapered NPT male pipe threads, a free-spinning NPSM straight mechanical swivel nut with an internal 60° cone seat, and a solid hex body. Delivers twist-free line alignment, dependable metal-to-metal sealing, and superior blowout resistance in ANSI/ASME B1.20.1 high-pressure industrial fluid systems.

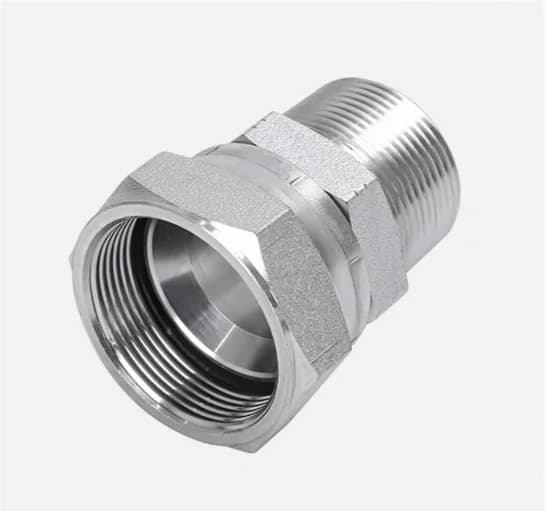

Advanced 2NJ straight NPT male to JIC female swivel 37° flare hydraulic adapter. Features tapered NPT male pipe threads, a free-spinning JIC female swivel nut with an internal 37° seat, and a heavy-duty hex body. Delivers twist-free line alignment, airtight metal-to-metal dry sealing, and superior blowout resistance in SAE J514 and ANSI/ASME B1.20.1 high-pressure industrial hydraulic systems.
Advanced 1T straight BSPT male hex nipple hydraulic adapter. Features dual symmetrical precision-tapered British Standard Pipe Taper (BSPT) male threads and an integrated heavy-duty hex body. Delivers dependable thread-wedging dry sealing, unobstructed full-bore laminar fluid flow, and superior blowout resistance in ISO 7-1 / BS 21 high-pressure industrial hydraulic systems and process piping networks.

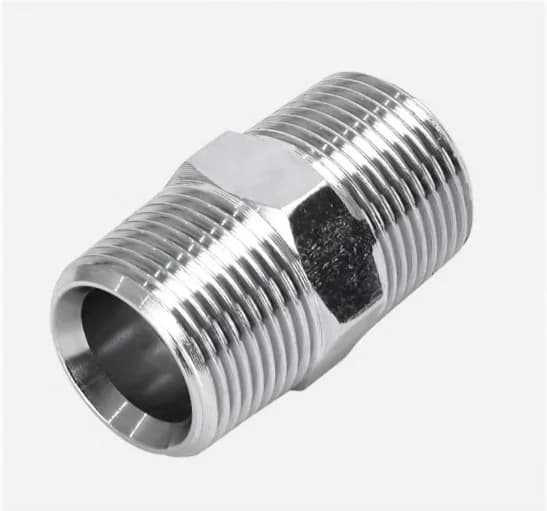

Advanced 1N straight NPT male hex nipple hydraulic adapter. Features dual symmetrical precision-tapered National Pipe Taper (NPT) male threads and an integrated heavy-duty hex body. Delivers dependable thread-wedging dry sealing, unobstructed full-bore laminar fluid flow, and superior blowout resistance in ANSI/ASME B1.20.1 high-pressure industrial hydraulic systems and pipe networks.

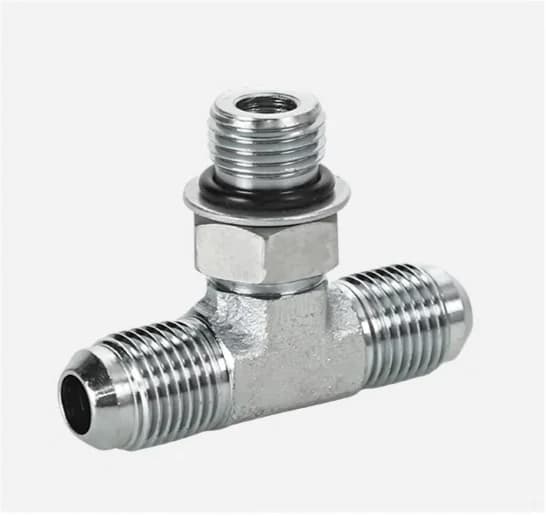

Advanced AJOJ-OG JIC male 37° flare to SAE male O-ring boss (ORB) adjustable branch tee hydraulic adapter. Features dual inline 37° male flare run ends and a 90° adjustable ORB stud with O-ring, backup washer, and locknut on a forged T-body. Delivers 360° radial orientation, positive cavity face sealing, and blowout-proof reliability in high-pressure SAE J514 / ISO 8434-2 systems.

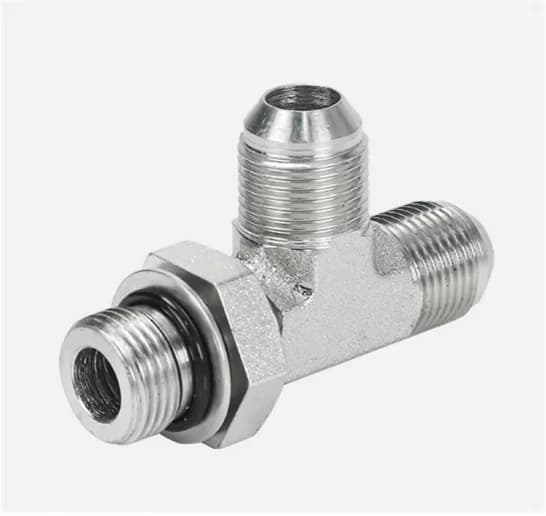

Advanced AJJO-OG JIC male 37° flare to SAE male O-ring boss (ORB) adjustable run tee hydraulic adapter. Features an inline run with one 37° male flare and one adjustable ORB stud with O-ring, backup washer, and locknut, plus a 90° male 37° branch. Delivers 360° radial orientation, positive cavity face sealing, and blowout-proof reliability in high-pressure SAE J514 / ISO 8434-2 systems.

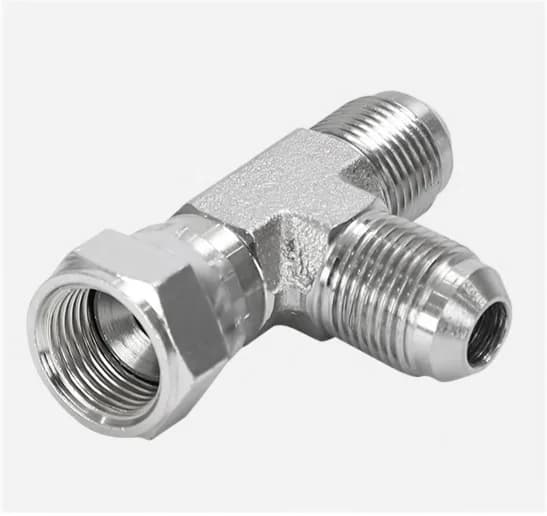

Advanced CJ JIC male 37° flare to JIC female swivel 37° flare run tee hydraulic adapter. Features an inline run with one 37° male cone and one female swivel nut, plus a 90° male 37° branch on a forged T-body. Delivers twist-free inline run plumbing, airtight metal-to-metal dry sealing, and superior blowout resistance in SAE J514 / ISO 8434-2 high-pressure industrial systems.
Advanced BJ JIC male 37° flare to JIC female swivel 37° flare branch tee hydraulic adapter. Features dual male 37° flare inline run ends and a 90° female swivel branch nut with an internal 37° cone seat on a forged T-body. Delivers twist-free branch tee plumbing, airtight metal-to-metal dry sealing, and superior blowout resistance in SAE J514 / ISO 8434-2 high-pressure industrial systems.

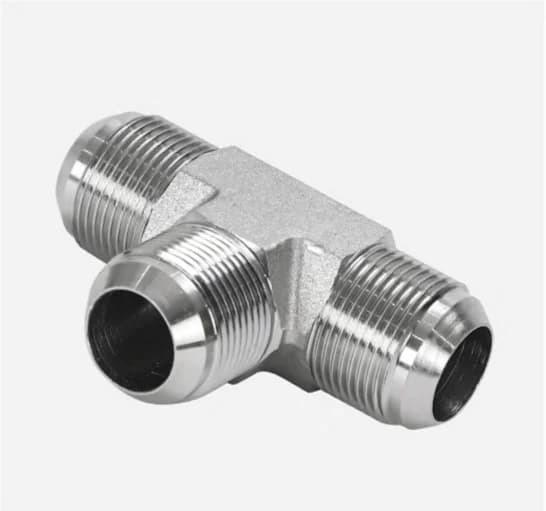

Advanced AJ JIC male 37° flare union tee hydraulic adapter. Features three symmetrical 37° male cone noses with standard UN/UNF straight threads on a forged T-junction body. Delivers three-way fluid distribution, airtight metal-to-metal dry sealing, and superior blowout resistance in SAE J514 / ISO 8434-2 high-pressure industrial hydraulic systems.

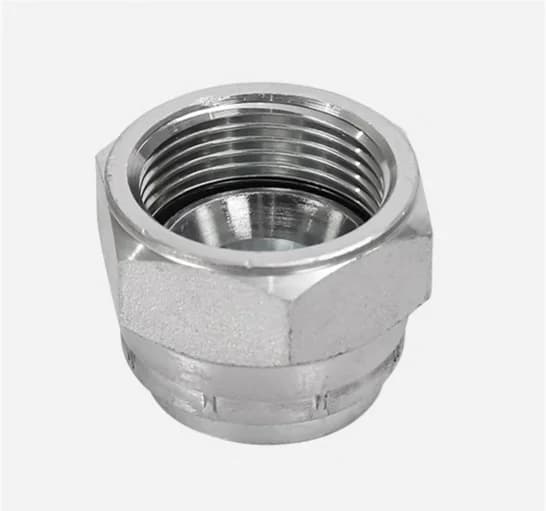

Advanced 9J JIC female 37° flare swivel sealing cap. Features precision internal UN/UNF straight threads, a deep-dish flared seat plug with internal 37° sealing cone, and a heavy-duty free-spinning hex swivel nut. Threads onto external JIC male 37° fittings to provide twist-free line shutoff, positive metal-to-metal sealing, and burst-proof reliability in SAE J514 / ISO 8434-2 high-pressure circuits.

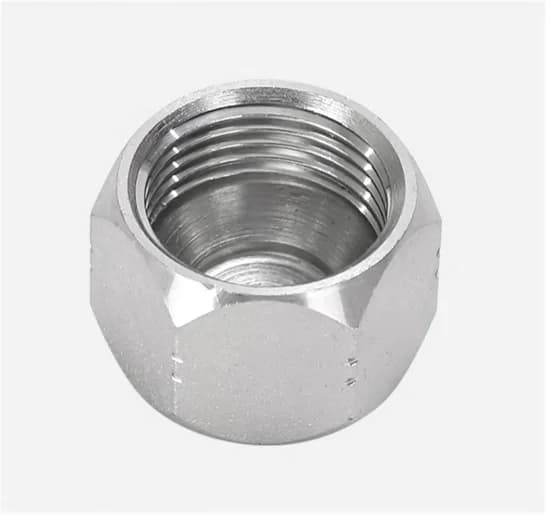

Advanced 9J-Cap JIC female 37° flare sealing cap. Features precision internal UN/UNF straight threads, a machined 37° female cone seat, and a heavy-duty hexagonal solid body. Threaded directly onto external JIC male 37° flare fittings to deliver airtight metal-to-metal dry shutoff, contaminant exclusion, and burst-proof reliability in SAE J514 / ISO 8434-2 high-pressure hydraulic circuits.

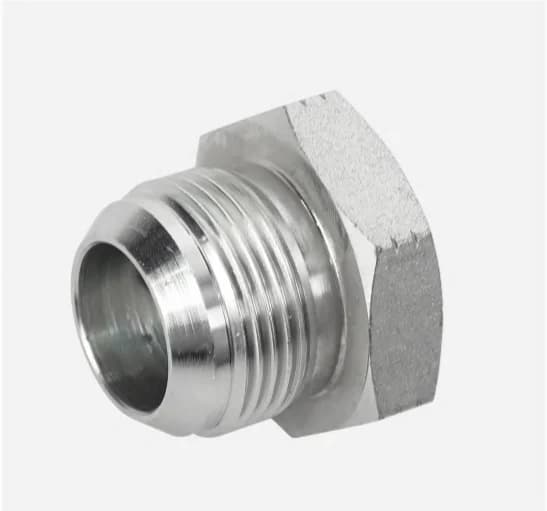

Advanced 4J JIC male 37° flare sealing plug. Features a precision-machined 37° male cone nose, standard external UN/UNF straight threads, and an integrated heavy-duty hex head. Designed to thread directly into female JIC swivel fittings or ports to provide positive metal-to-metal dry shutoff, contaminant exclusion, and burst-proof reliability in SAE J514 / ISO 8434-2 high-pressure hydraulic circuits.

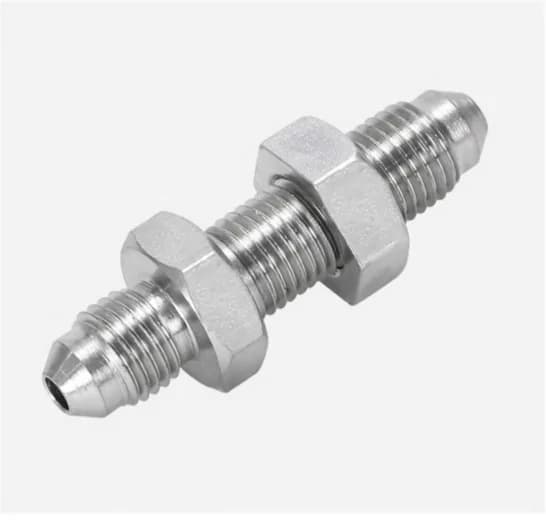

Advanced 6J-LN straight bulkhead JIC male 37° flare hydraulic union adapter with locknut. Features symmetrical 37° male cone seats, standard UN/UNF straight threads, and an extended bulkhead shank with a heavy-duty locking nut. Enables secure panel penetration, positive metal-to-metal sealing, and vibration-proof reliability for high-pressure SAE J514 / ISO 8434-2 systems.

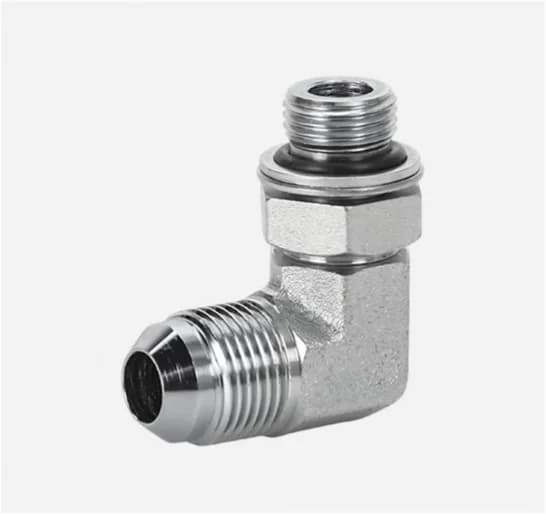

Advanced 1JH9-OG 90° elbow JIC male 37° flare to Metric male adjustable stud hydraulic adapter. Features a precision 37° male flare and an adjustable ISO 6149 / ISO 9974 Metric stud with an elastomeric O-ring, retaining ring, and locknut. Delivers 360° directional alignment, positive cavity face sealing, and blowout-proof reliability for high-pressure cross-standard industrial hydraulic systems.

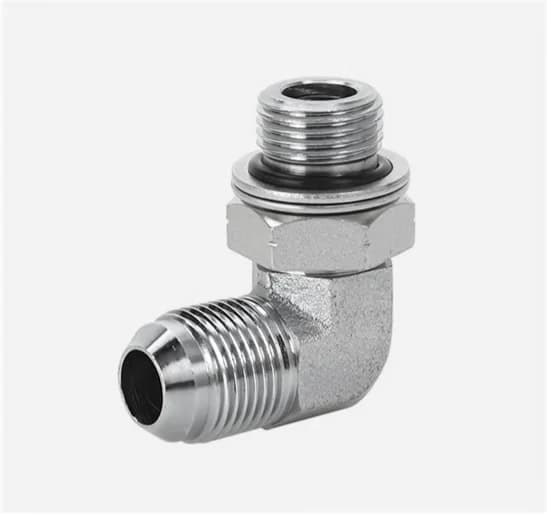

Advanced 1JG9-OG 90° elbow JIC male 37° flare to BSPP male adjustable stud hydraulic adapter. Features a precision 37° male flare and an adjustable parallel BSPP stud with an elastomeric O-ring, retaining ring, and locknut. Delivers 360° directional alignment, positive cavity face sealing, and blowout-proof reliability for high-pressure cross-standard industrial hydraulic systems.

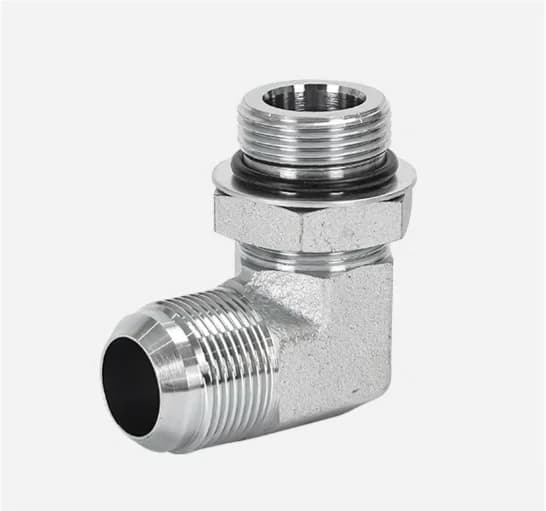

Advanced 1JO9 90° elbow JIC male 37° flare to SAE male O-ring boss (ORB) adjustable hydraulic adapter. Features a precision 37° male cone and an adjustable UN/UNF ORB stud with O-ring, backup washer, and locknut. Delivers 360° directional alignment, positive cavity sealing, and burst-proof reliability for high-pressure SAE J514 industrial hydraulic systems.

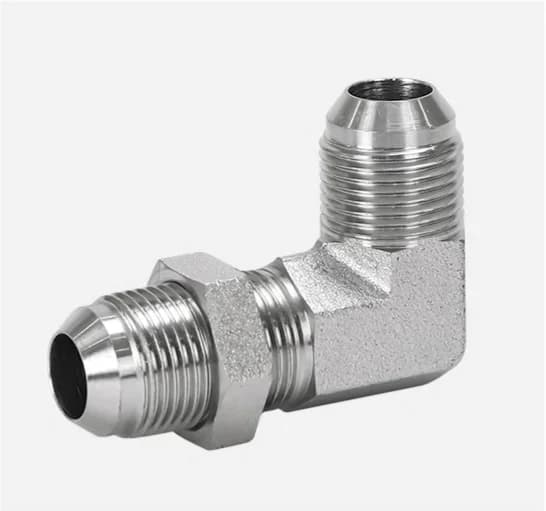

Advanced 6J9 90° elbow bulkhead JIC male 37° flare hydraulic union adapter. Engineered with dual symmetrical precision-machined 37-degree external cone seats, an extended threaded bulkhead shank with a heavy-duty locking nut, and a forged compact 90-degree elbow body to provide clean right-angle directional routing through panels and partitions, dependable metal-to-metal dry sealing, and superior blowout resistance in SAE J514 / ISO 8434-2 high-pressure industrial hydraulic systems.

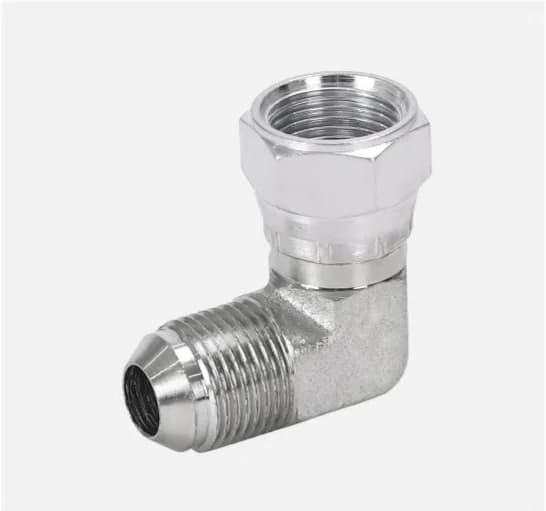

Advanced 2J9 90° elbow JIC female swivel 37° flare to JIC male 37° flare hydraulic adapter. Engineered with a precision free-spinning JIC female swivel nut featuring an internal 37-degree cone seat, a precision-machined 37-degree external cone nose on the mating end, and a forged compact 90-degree elbow body to provide clean right-angle directional routing, twist-free line alignment, and superior blowout resistance in SAE J514 / ISO 8434-2 high-pressure industrial hydraulic systems.
Advanced 1J9 90° elbow JIC male 37° flare union hydraulic adapter. Engineered with dual symmetrical precision-machined 37-degree external cone seats, standard UN/UNF straight male threads on both ports, and a forged compact 90-degree elbow body to provide clean right-angle directional routing, dependable metal-to-metal dry sealing, and superior blowout resistance in SAE J514 / ISO 8434-2 high-pressure industrial hydraulic systems.

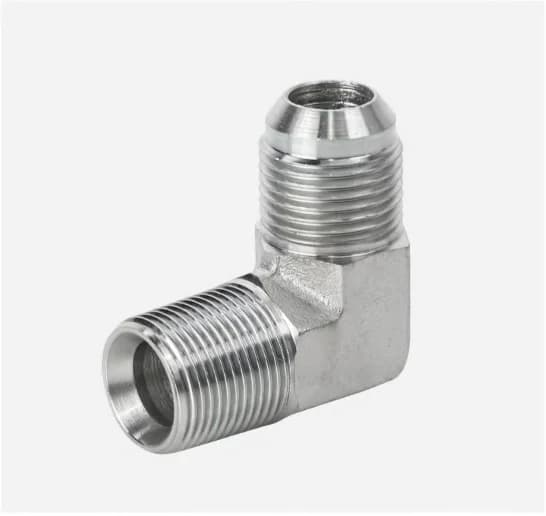

Advanced 1JT9 90° elbow JIC male 37° flare to BSPT male hydraulic adapter. Engineered with a precision-machined 37-degree external cone nose, tapered British Standard Pipe Taper (BSPT) male threads, and a forged compact 90-degree elbow body to provide clean right-angle directional routing, dependable metal-to-metal dry sealing, and superior blowout resistance in SAE J514 / ISO 8434-2 high-pressure industrial hydraulic systems.

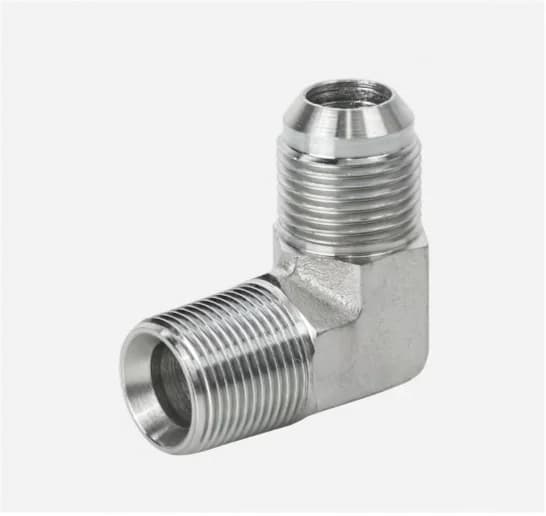

Advanced 1JN9 90° elbow JIC male 37° flare to NPT male hydraulic adapter. Engineered with a precision-machined 37-degree external cone nose, tapered National Pipe Taper (NPT) male pipe threads, and a forged compact 90-degree elbow body to provide clean right-angle directional routing, dependable metal-to-metal dry sealing, and superior blowout resistance in SAE J514 / ISO 8434-2 high-pressure industrial hydraulic systems.

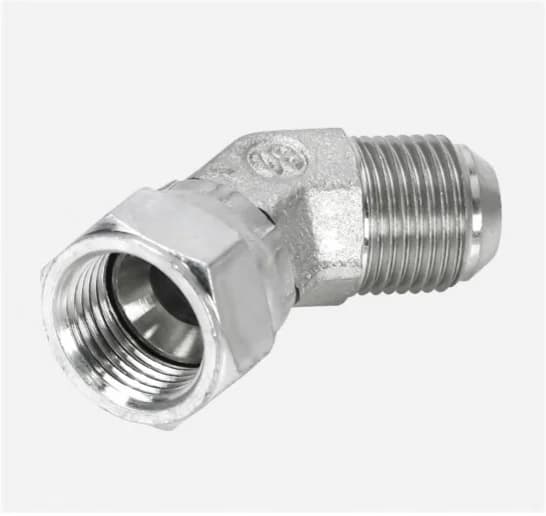

Advanced 2J4 45° elbow JIC female swivel 37° flare to JIC male 37° flare hydraulic adapter. Engineered with a precision free-spinning JIC female swivel nut featuring an internal 37-degree cone seat, a precision-machined 37-degree external cone nose on the mating end, and a forged compact 45-degree elbow body to provide smooth angular directional routing, twist-free line alignment, and superior blowout resistance in SAE J514 / ISO 8434-2 high-pressure industrial hydraulic systems.
Advanced 1JG4 45° elbow JIC male 37° flare to BSPP male adjustable O-ring stud end hydraulic adapter. Engineered with a precision-machined 37-degree external cone nose, a parallel BSPP male adjustable stud equipped with an elastomeric O-ring and retaining locknut assembly, and a forged compact 45-degree elbow body to provide precise 360-degree positional orientation, positive cavity face sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.

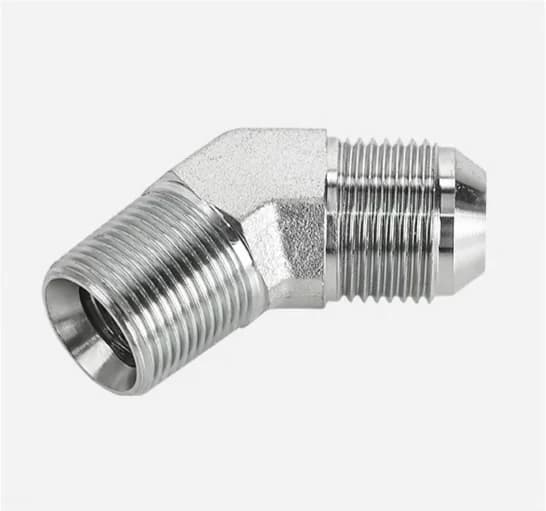

Advanced 1JT4 45° elbow JIC male 37° flare to BSPT male hydraulic adapter. Engineered with a precision-machined 37-degree external cone nose, tapered British Standard Pipe Taper (BSPT) male threads, and a forged compact 45-degree elbow body to provide smooth angular directional routing, dependable metal-to-metal dry sealing, and superior blowout resistance in SAE J514 / ISO 8434-2 high-pressure industrial hydraulic systems.
